VA05

LED CHART PROJECTOR

Screen:

Type: 17 inch XGA Panel with LED backlit screen.

Resolution: 1280x1024 pixels

Brightness: 200cd/m²(min)

Charts:

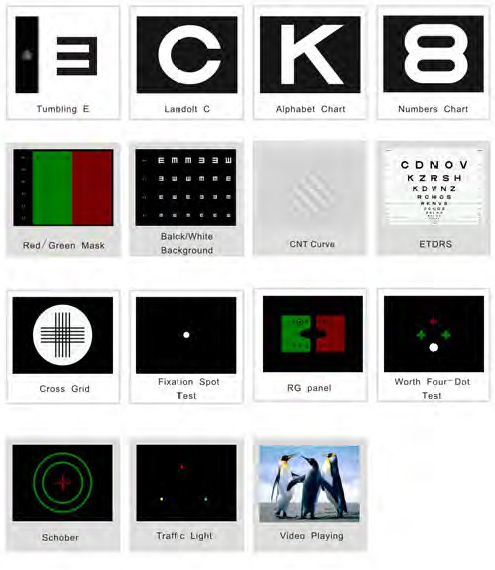

Optotype: Tumbling E, Landolt C, Alphabet, Numbers, Children,Allen

Mask type: Single mask, Horizontal mask, Vertical mask, White/Black Mask, Red/Green mask

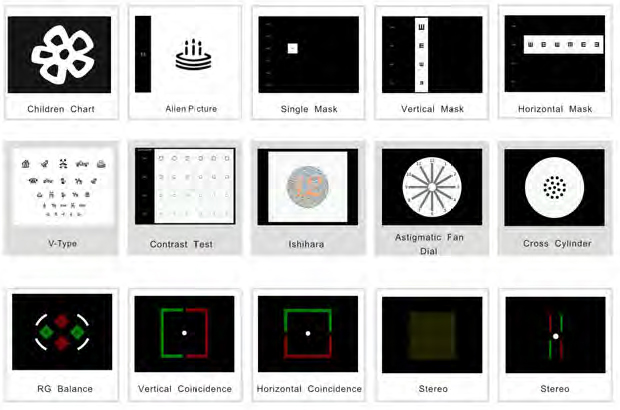

Special Chart: ETDRS, Contrast Sensitivity Test, Contract Test, Ishihara, Cross Cylinder, Astigmatic Fan Dial, Cross Grid, Fixation Sport Test, Stereo Test, Red/Green Panel, Worth Four -Dot Test, Red/Green Balance, Traffic Light, Horizontal Coincidences, Vertival Coincidences, Schober.

Low vision chart (E, C, Alphabet, Number, Children, Allen pictures), "V" Style Optotypes

Other Functions:

Video Playing, Image Browing, Randomization Optotypes Playing, Mirror Function, Screen Saver Function, Standby Function.

Visus Unit:

Decimal: 0.04～2.0

Snellen(ft): 20/500～20/10

Snellen(m): 6/150～6/3

LogMAR: -0.3～1.4

5-Grade: 3.6～5.3

Working Distance:

2m-7m(in steps of 0.1m) 6ft-24ft(in steps of 0.5ft)

Low vision chart: 0.6m-1.5m, in steps of 0.1m

Power Supply:

Input: 100-240V AC, 60/50Hz

Consumption: 20Walt(max)

Remote Controller:

IR Remote, 2# AAA Batteries

Standard Accessories:

Remote Controller, Wall Bracket, Red/Green Glasses, Optotypes Card, Power Cable, AC-DC Adaptor

Optional Accessories:

Dest Support, Groud Support

New Advantages:

* New CNT test, which is more scientific, effective and directive. CNT curve will be formed and displayed on the screen when the test is finished.

* V style optotype arrangement--Avoid optotypes congested on the screen.

* Quick test list--Pick ten(or less) frequently used tests to establish your own quick test list.

* Excellent programming give full play to the features of CPU.

* Will release software update about every two months, please stay tune on us for getting a better operating experience.

Advanced parameter settings experience:

The built-in software is developed on Linux platform. All the optotypes and charts are vector graph. In order to be adaptable to various clinical conditions and offer a better operating experience to customers. it designs an user friendly parameter setting interface.

With the wall bracket, it can be installed on the wall. The wall bracket is adjustable from 0 to 180 both horizontally and vertically.

With two external ports on it provided for SD Card and USB flash disk connection,the user

Can run the automatic update procedure.

Video playing and image browsing

Support more formats of videos and picturers: Video of AVI, MKV and MP4 format. Image in gif, bmp, jpge, png, format.
