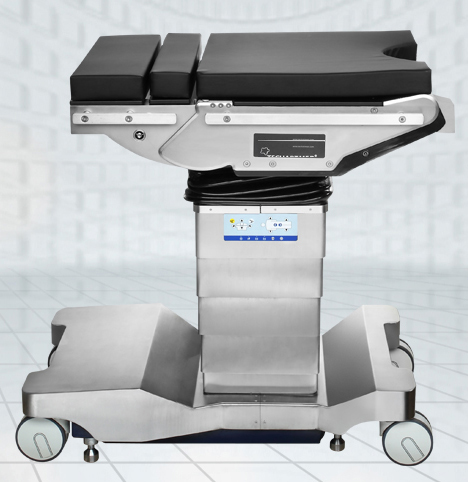

EO800
OPERATING TABLE
1.Longitudinal slide up to 310mm for free access to C-arm without need to reposition the patient.
2.Extreme weight load capacity of 350 kg with highest safety and stability.
3.Modular design tabletop tailored for various surgical discipline needs.
4.The Easy click new mounting point enables the table adapted to wide variety of surgery and patients’ height.
5.Memory pad with antistatic ，waterproof design.
6.Standard override panel control makes the control safer.
7.Maximum and minimum heights, for comfortable working ,both seated and standing.
Parameters
Tabletop Length/width |
≥2100/550mm |
Tabletop Elevation(up/down) |
≥1050/≤550mm |
Trendelenburg/Anti-tredelenburg |
≥35°/≥35° |
lateral tilt (left and right) |
≥25° |
Head plate adjustment |
Up:≥40°,down:≥90°,flexible:≥40° |
Leg plate adjustment |
electric up:≥80°
electric down:≥90°
manual down ≥90°
manual outward:≥90° |
Back plate adjustment |
Up:≥80°/ down:≥45° |
Sliding |
310mm |
Kidney Bridge |
120mm |
flex: |
≥225° |
reflex: |
≤100° |
Standard accessories |
|
Anesthetic Screen |
1 piece |
Shoulder support(body support) |
1 pair |
Arm board |
1 pair |
Leg support |
1 pair |
Foot plate |
1 pair |
Long fixing clamp |
2 pieces |
Fxing clamp |
7 pieces |
Hand remote |
1 piece |
Mattress |
1 set |
|
