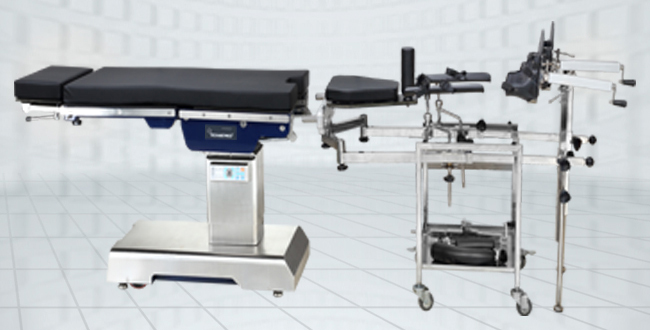

EO700S

OPERATING TABLE

EO700S comes with intelligent automatic control system satisfying various demands of general surgeries.

1.Longitudinal slide up to 350 mm for free access to C-arm
2.Extreme weight load capacity of 300 kg with highest safety and stability
3.Memory pad with antistatic, waterproof design
4.Standard override panel control makes the control safer

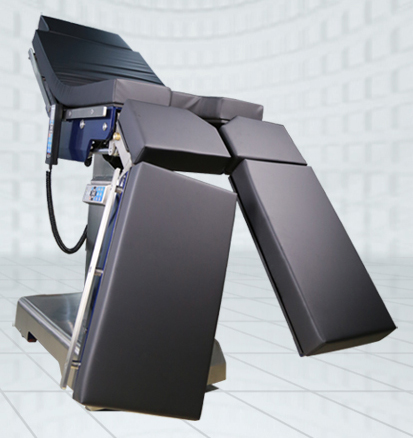

5."Easy Click“ leg plate controlled by electro-hydraulic and manual
6.Battery power for 50-80 operations

Parameters

Tabletop Length/width	2170/550mm
Tabletop Elevation(up/down)	1100/690mm
Trendelenburg/Anti-tredelenburg	30°/30°
lateral tilt	20°/20°
Head plate adjustment	up:45°/down:90°
Leg  plate  adjustment	up:15°,down:90°,outward:90°
Back plate adjustment	up:85°/dwon:40°
Sliding	350mm
Kidney Bridge	110mm

Standard accessories
Anesthetic Screen	1 piece
Shoulder support	1 pair
Body support	1 pair
Arm board	1 pair
Leg support	1 pair
Foot plate	1 pair
Long fixing clamp	2 pieces
Fxing clamp	7 pieces
Hand remote	1 piece
Mattress	1 set
