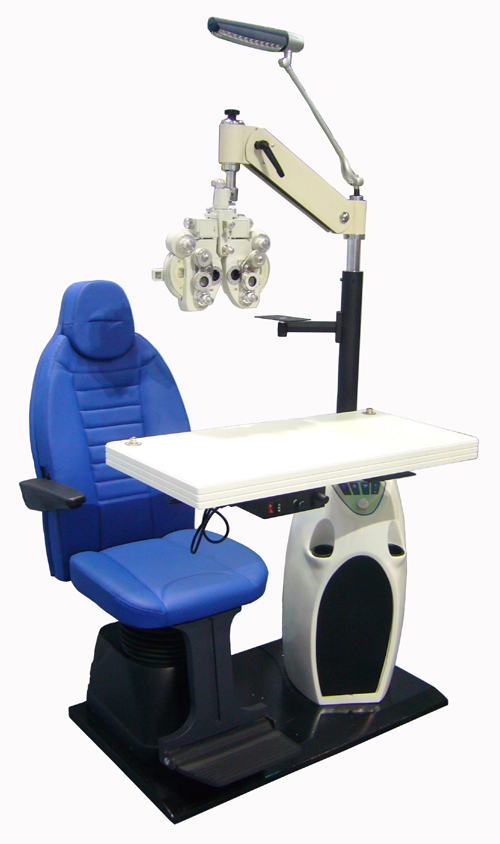

CT64 Series

COMBINED TABLE

Model	CT64	CT64A	CT64B	CT64C	CT64D
Tabletop mm	670x400	840x405	670x400	840x405 Electromagnetic lock	840x405 Electromagnetic lock
Base board	Divided	Integrate	Divided	Integrate	Rectangle
Foot plate	Non folding	Non folding	Non folding	folding	folding
Chair	Non rotatable	Rotatable	Non Rotatable	Rotatable	Rotatable
Lamp	New Style	New Style	New Style	New Style	New Style

Features:

*Adopts Europe style in appearance designing, small and exquisite, can be used for small room.
*Hand-operated phoropter arm can swing up and down, left and right to its best position, which shows the human-oriented design of it.
*Easy operation with a well positioned control panel.
*Worktable provides with 90 degrees’ rotation.
*Sliding table to accommodate two instruments.
*Table instrument power supply voltage selectable, 3V, 6V, 9V, 12V, and 24V (50W)
*Auxiliary 110V/220V output under table
*The comfortable and beautiful chair can smoothly lift up and down with low noise and able to bear big force.

Mechanical Parameters

Tabletop: 840x405mm / 670x400mm
Up/Down angle of swing arm: ±30°
Table rotational angle: 90°
Table sliding movement: 330mm
Angle of rotation for chair: ±60°
Lifting height for chair: 150~200mm
Loading for chair: 70~150kgs
Lifting height for pillow: ＋150mm
Backrest obliquity: 90°~135°or 140°
Electrical Parameters
Input voltage: 110V/220V AC 50Hz~60Hz
Engine power: 55W 24V DC
Light luminaire: 40W 110V/220V AV
Fuse: 5A 250V AC
Power without load: 1W
Pressure test: 2KV
Main wire: 10A 250V
Working mode: S1
Working temperature: －30º~＋50º
Relative humidity: less than 90%
Force of pressing key: 1~5N
Cooling mode: Nature cooling
