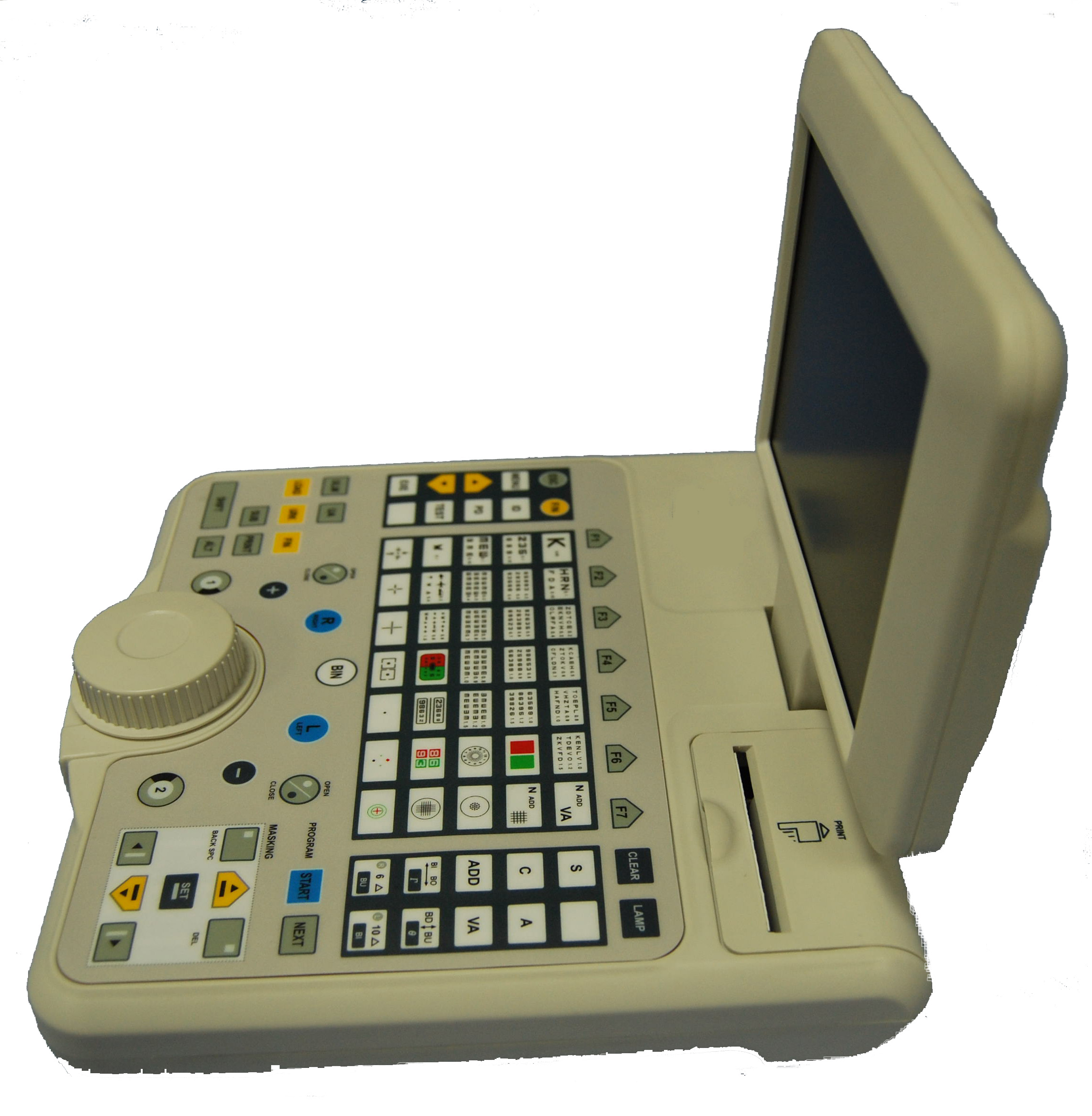

AP20
AUTO PHOROPTER(VISION TESTER)
AP20 can work with
Chart Projector CP06 & CP08 & CP10.
Auto Refractometer-Keratometer RK15 & RK20.
Ophthalmic Unit UN218 & UN400 & UN518 & UN600 & UN1000.
【 Technical Parameters 】 |
Sphere |
-29.00D~+26.75D 0.12D/0.25D/0.50D/1D/2D/3D |
Cylinder |
0.00~8.75D /0.25D/0.50D/1D/2D/3D |
Cylinder Power(CYL) |
0~180° 1°/5°/15°/30°/45° |
Pupillary Distance |
Distant range: 48~80mm 0.5/1mm |
Close range: 45~75mm 0.5/1mm |
Rotary Prism |
0~20△ 0.1△ /0.2△/0.5△ /1.0△/2.0△ |
Cross Cylinder Lens |
±0.25D/±0.50D |
Ophthalmoscope |
+1.50D(67cm) +2.00D(50cm) |
Auxiliary Lens |
Pinhole Lens(1.0mm) |
Maddox: Right(red/horizon),Left(red/vertical) |
Red and Green Lens: Right(red), Left(green) |
Polaroid(Right eye 135°/45°; Left eye 45°/135°) |
Seperation Prism: Right 6△BU, Left 10△BI |
Solid Suprachiasmatic Cylinder Lens: 0.50D |
【Features】
1. Contour design is elegant.
2. With Sphere fast rotating disk, enabling the rapid adjustment of 3.00m-1.
3. The unique Cross Cylinder design, convenient and flexible.
4. Can be easily used to measure near visual acuity.
5. It can connect with Refractometer and projector.
|
|
