VACUUM STEAM AUTOCLAVE

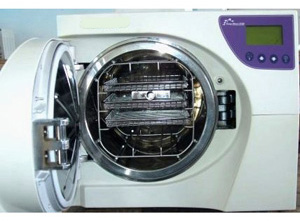

Round Door

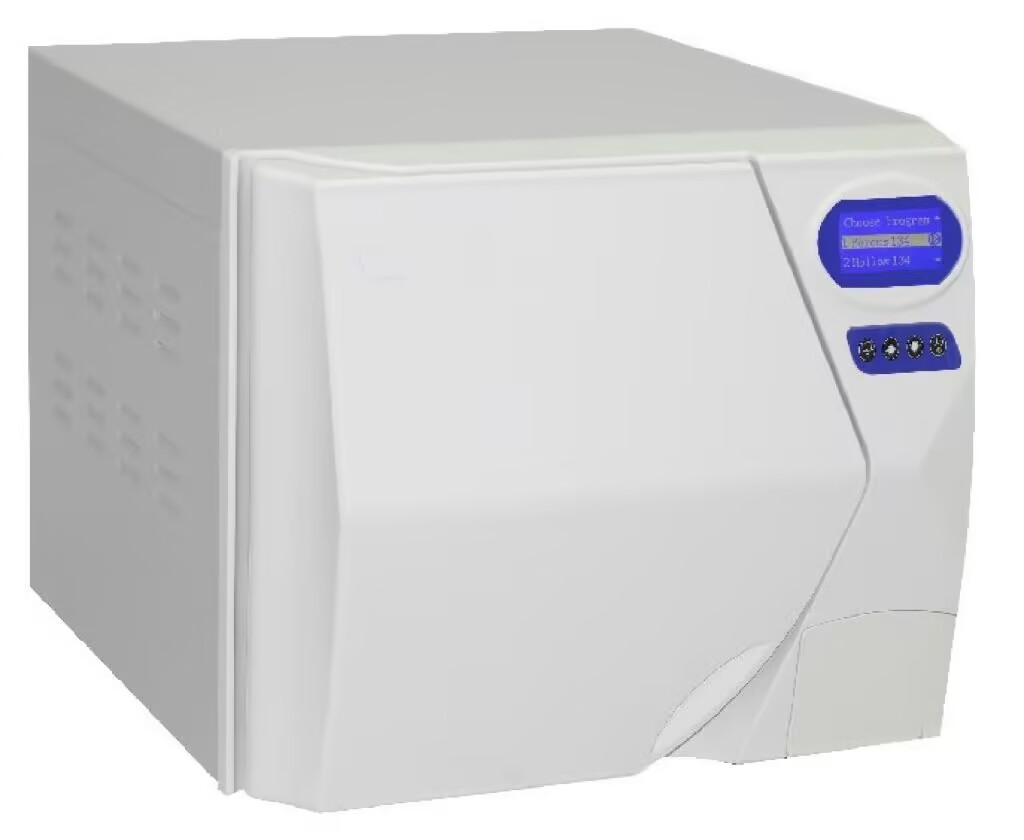

Pointed Door
Functions
1--wide LCD display to show information directly in the screen
2-- automatic operations with easy system
3--English languages or customized language
4--use internal printer to record the sterilization cycle
5. pass CE,ISO certificated, issued by TUV, Germany
6. one clean water tank inside, the waste water will drain automatic during working
7. small capacity: 14 liter,17 liter and 23 liter,30 liter
8. automatic feeding water and draining waste water directly while the machine is working, it means you don't need to care the waste water how is goes
9. has 8 programs to choose, can sterilizer the all instruments expect for liquid
10. has quick cycle
Model |
AC14L |
AC17L |
AC23L |
AC30L |
Chamber Dimensions(mm)(Φ ×D) |
250x270 |
250x380 |
250x500 |
250x500 |
Chamber Capacity(liter) |
14L |
17L |
23L |
30L |
Overall Size(cm)(L×W×H) |
48x48x42 |
48x56x42 |
48x67x42 |
48x67x42 |
Heater |
1200W |
1300W |
1800W |
2000W |
Minimum Desk Top Size(cm) |
48x35 |
48x40 |
48x50 |
90x60 |
Sterilize Temperature |
121/134 |
Sterilize Time |
4-18 mins |
Dry Procedure |
Vacuum drying |
Sterilizer Construction |
High quality stainless steel |
Clean Water Tank |
Internal |
Stainless steel instrument containe |
3 trays |
Power Supply |
220±10%,110V,50/60HZ,10A |
|
